Enable Open Telemetry

DL Streamer Pipeline Server supports gathering metrics over Open Telemetry. The supported metrics currently are:

• cpu_usage_percentage: Tracks CPU usage percentage of DL Streamer Pipeline Server python process

• memory_usage_bytes: Tracks memory usage in bytes of DL Streamer Pipeline Server python process

• fps_per_pipeline: Tracks FPS for each active pipeline instance in DL Streamer Pipeline Server There is a dedicated docker compose file for demonstrating Open Telemetry for DL Streamer Pipeline Server. It is available in DL Streamer Pipeline Server’s github repository, under the “docker” folder i.e., [WORKDIR]/docker/docker-compose-otel.yml The way it works is, DL Streamer Pipeline Server exports the telemetry data to the open telemetry service (otel/opentelemetry-collector-contrib) and then prometheus service scrapes the data which can be visualized. The necessary configuration for open telemetry and prometheus services is located at [WORKDIR]/configs/open_telemetry/otel-collector-config.yaml and [WORKDIR]/configs/open_telemetry/prometheus.yml respectively. Below are the necessary configuration to be aware of (or modify accordingly based on your deployment) in [WORKDIR]/docker/.env (They will be consumed appropriately in [WORKDIR]/docker/docker-compose-otel.yml):

ENABLE_OPEN_TELEMETRY=true # true to enable open telemetry and false otherwise
OTEL_COLLECTOR_HOST=otel-collector # open telemetry container name in `[WORKDIR]/docker/docker-compose-otel.yml`. Can also be the IP address of the machine if open telemetry container is running on a different machine. Ex: OTEL_COLLECTOR_HOST=10.10.10.10
OTEL_COLLECTOR_PORT=4318 # Open telemetry container will receive data on this port. If this value is changed, ensure to update `[WORKDIR]/configs/open_telemetry/otel-collector-config.yaml` appropriately.
OTEL_EXPORT_INTERVAL_MILLIS=5000 # How often to export metrics to the open telemetry collector in milli seconds.

With this information at hand, let us now see open telemetry in action.

• Start the services

      docker compose -f docker-compose-otel.yml up


• Open another terminal and start a pipeline in DL Streamer Pipeline Server with the below curl command.

      curl http://localhost:8080/pipelines/user_defined_pipelines/pallet_defect_detection -X POST -H 'Content-Type: application/json' -d '{
      "source": {
          "uri": "file:///home/pipeline-server/resources/videos/warehouse.avi",
          "type": "uri"
      },
      "destination": {
          "metadata": {
              "type": "file",
              "path": "/tmp/results.jsonl",
              "format": "json-lines"
          },
          "frame": {
              "type": "rtsp",
              "path": "pallet-defect-detection"
          }
      },
      "parameters": {
          "detection-properties": {
              "model": "/home/pipeline-server/resources/models/geti/pallet_defect_detection/deployment/Detection/model/model.xml",
              "device": "CPU"
          }
      }
  }'


  Note down the pipeline_id returned by this command. Ex: “658a5260f37d11ef94fc0242ac160005”

• Open http://<HOST_IP>:<PROMETHEUS_PORT> in your browser to view the prometheus console and try out the below queries (PROMETHEUS_PORT is by default configured as 9999 in [WORKDIR]/docker/.env file):

  • cpu_usage_percentage

  • memory_usage_bytes

  • fps_per_pipeline{}

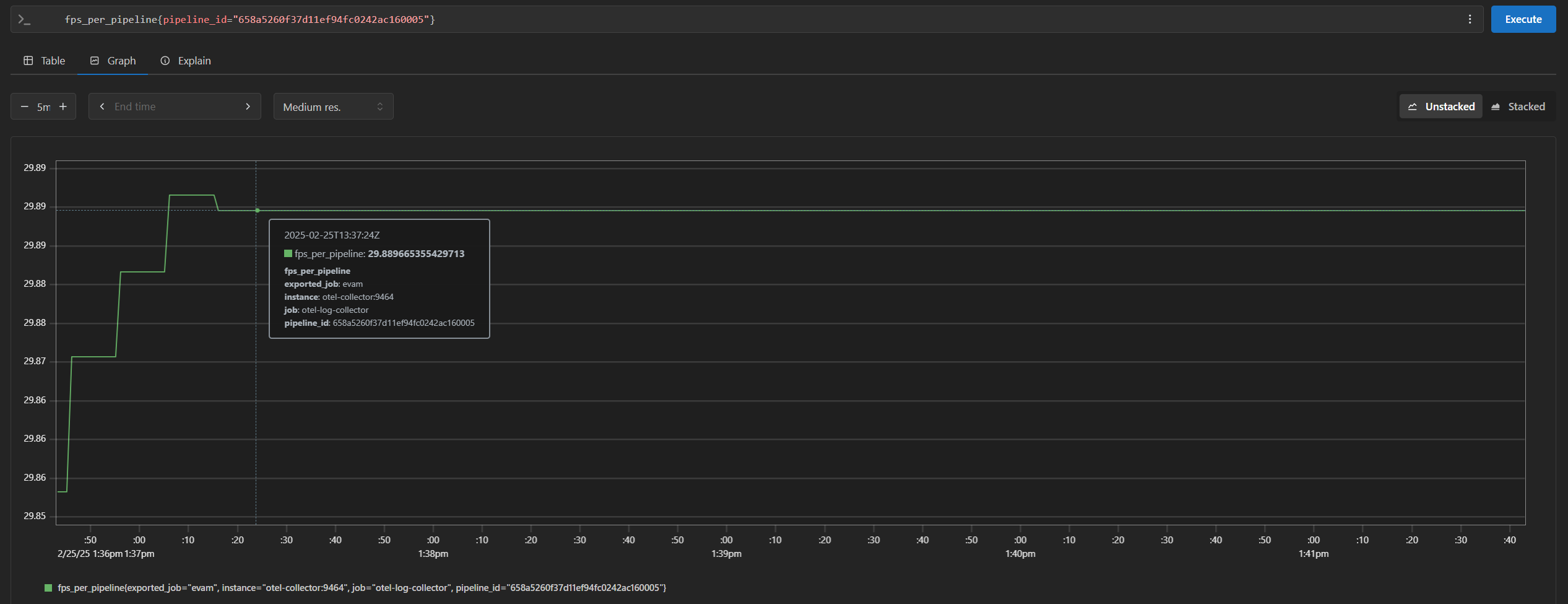

    • If you are starting multiple pipelines, then it can also be queried per pipeline ID. Example: fps_per_pipeline{pipeline_id="658a5260f37d11ef94fc0242ac160005"}
